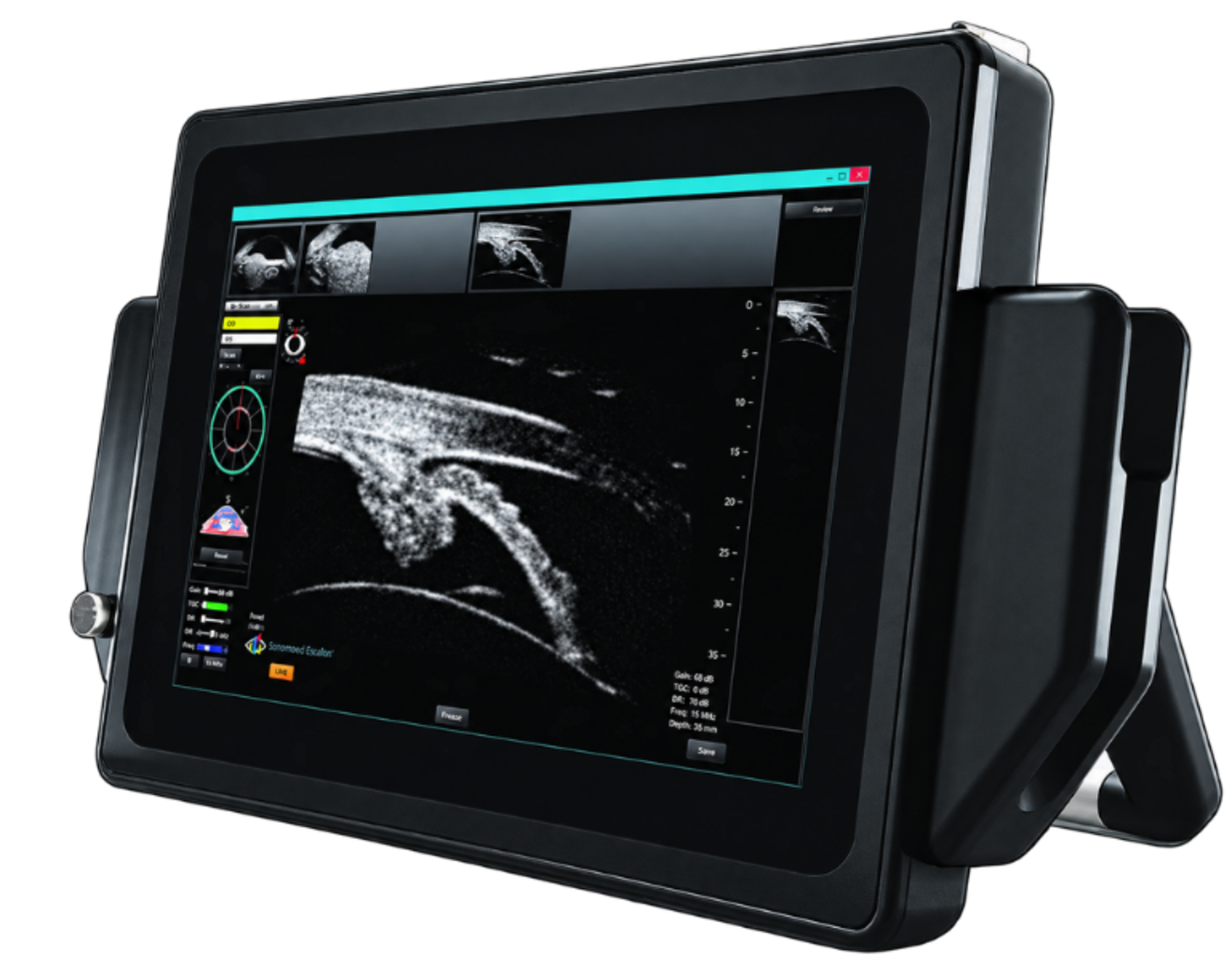

VuPad Ultrasound System
Ultrasound system from Sonomed Escalon with B-scan, UBM, A-scan, and pachymetry.
- B-scan probes: 12 MHz or 20 MHz focused transducers
- Scan profiles for orbit, vitreous, retina surface, and deep retina or choroid
- 256-ray scan with 2048 sample points per ray
- Adjustable gain, including time-varied, log, and exponential gain
- Adjustable velocity for eyes with silicone oil
- Video clips up to 20 fps, up to 50 clips per exam
- A-scan trace, calipers, and angle measurement
- B-biometry values feed preferred IOL formulas
- UBM probes: 35 MHz or 50 MHz
- Angle analysis and eye-tracking alignment
- A-scan: 10 MHz, contact or immersion
- IOL formulas: Binkhorst, Regression-II, Theoretic/T, Holladay, Hoffer-Q, and Haigis
- Post-refractive formulas: Latkany Myopic, Latkany Hyperopic, and Aramberri Double-K
- Pachymetry: 20 MHz, range 300 to 1000 microns
- Auto IOP correction from corneal thickness
- 13.3 inch console, weight 4.5 lbs (2.1 kg)
- Power: 100 to 240 VAC, 50/60 Hz
